D-800

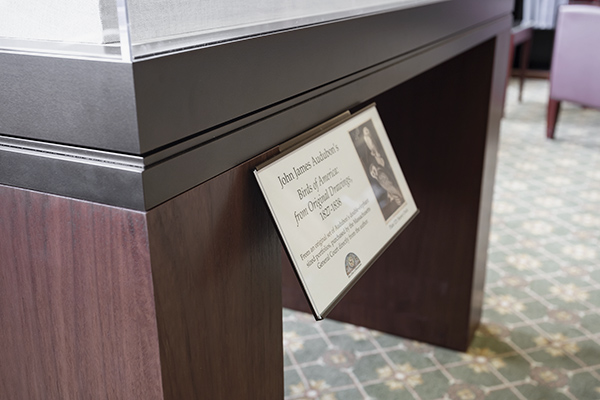

SmallCorp D-800 at MA Statehouse Library

D-800

Premium microclimate case for sensitive and valuable objects

Part of our line of table cases, the D-800 is a 100% archival microclimate museum case offering premium protection for sensitive documents, works on paper, or small artifacts. The hinged acrylic vitrine is supported by gas lifters and includes a keyed compression locking system. Enviromental buffering material can be accessed through an external access door. Our cases are based on standard designs manufactured to customers’ size requirements. 

    • Made with inert materials that will not off-gas or damage objects.
    • Microclimate capability to maintain the targeted relative humidity inside the case.
    • Air exchange rate between .75 and 1 per day.

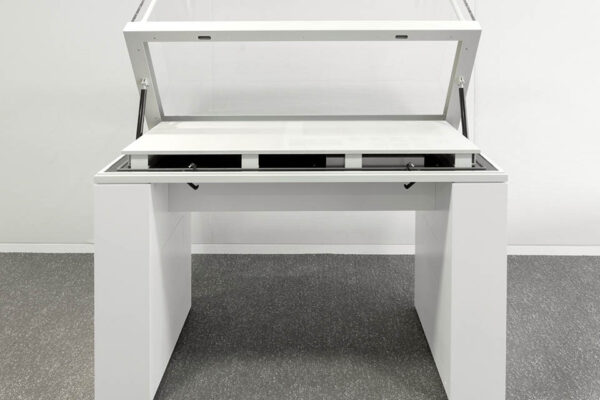

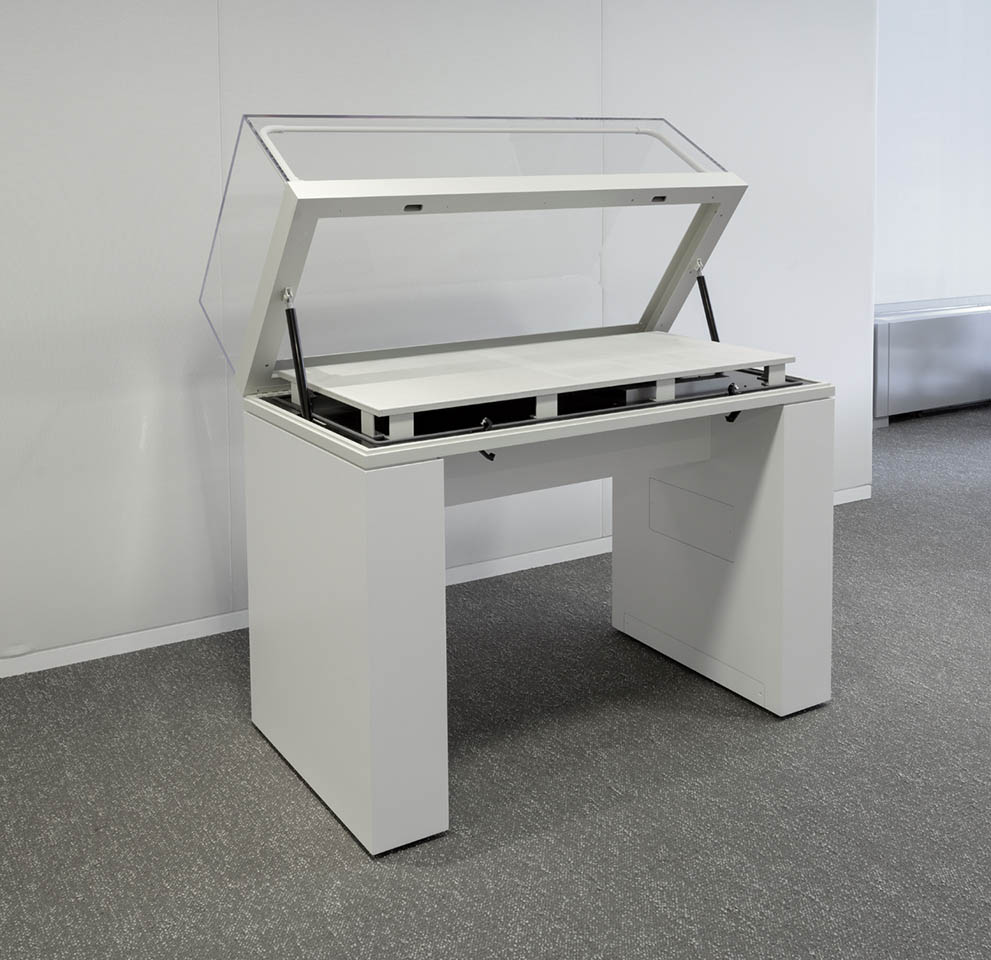

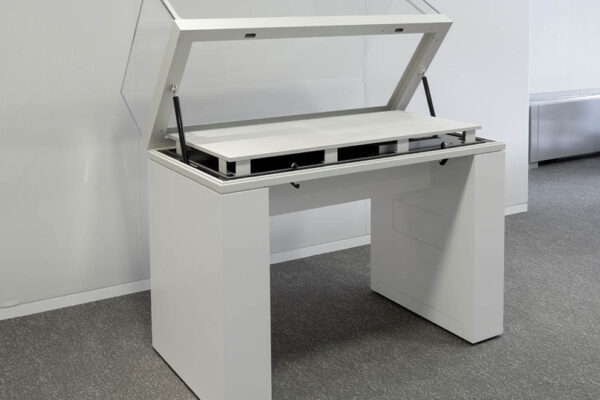

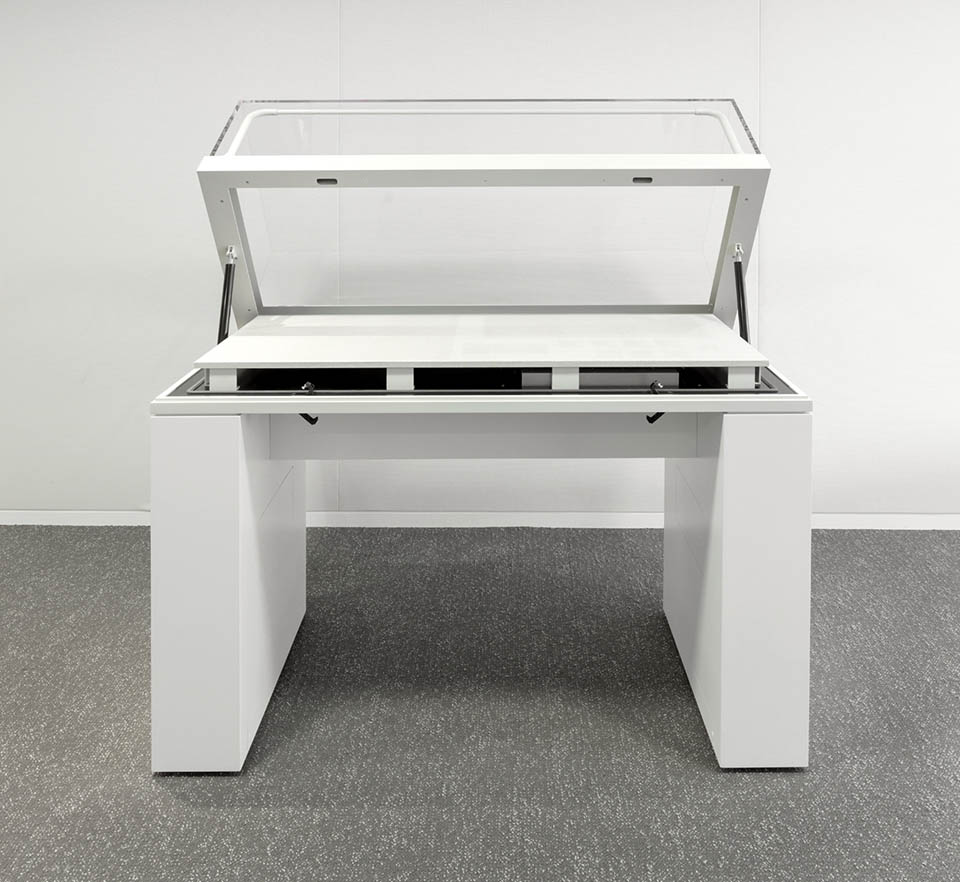

The D-800’s 5-sided, acrylic vitrine hinged open on gas lifters for easy one-person access to objects. An archival silicone gasket creates a seal between the vitrine and case frame. We manufacture museum-quality acrylic vitrines from clear or UV-filtering acrylic and are one of the few companies to manufacture museum-quality Optium Museum Acrylic® vitrines.

Glass options are also available.

Did you know we make replacement vitrines to fit existing cases?

This case includes a removable deck for easy access to silica gel. We offer several archival deck options and stock 4 archival fabrics (Oddy tested). We can also source custom archival fabrics.  

  • SmallCorp’s standard ODP deck consists of an aluminum composite panel adhered to an aluminum support frame, wrapped in fabric.  
  • Our Ethadeck includes an ODP deck base with a top layer of pinnable Ethafoam™ wrapped in fabric.   
  • Other available options include decks made with HDPE, expanded PVC, and more. 
  • Talk to us about slanted deck options 

The D-800 is manufactured using Medex ® for the panel leg base and has a powdercoated aluminum collar. This case comes standard with leveling feet and silica gel chamber under deck.

Finishes

Leg finish options include:

  • Latex Paint
  • Laminate
  • Wood Veneer

Various finish options ensure that your cases will complement your exhibit and facility. Many of our powdercoats have a direct latex paint match, allowing for a consistent finish. For those that don’t, we can offer custom or complementary colors.

  • Label rails
    • Internal
    • External
    • Wall-mounted
  • LED lighting systems
    • Dimmable LED spotlights or lightbar
    • Motion sensors
  • Archival Components
    • External silica gel access door – no need to remove objects and deck when changing silica gel
    • Conditioned Silica Gel Cartridge
    • Environmental Monitoring – data loggers 
  • Security
    • Stand-alone or hardwired security system
  • Roll out deck
  • Glass
    • UV-filtering laminated glass vitrine 
    • Tempered low-iron glass vitrine
