Recessed Acrylic Box Frame

Recessed Acrylic Box Frame

Acrylic picture frame with built-in spacer

Recessed acrylic box frames are, no-worry picture frames, with a built-in 3/8” spacer. Framers appreciate the simplicity of these frames, as art packages fit easily and just need to be screwed in place. These five-sided frames have an open back and come with a poplar strainer for mounting your artwork. This acrylic frame profile has a fixed depth and cannot be customized.

  • Minimum size 6” x 6”
  • Maximum size is 40” x 60”

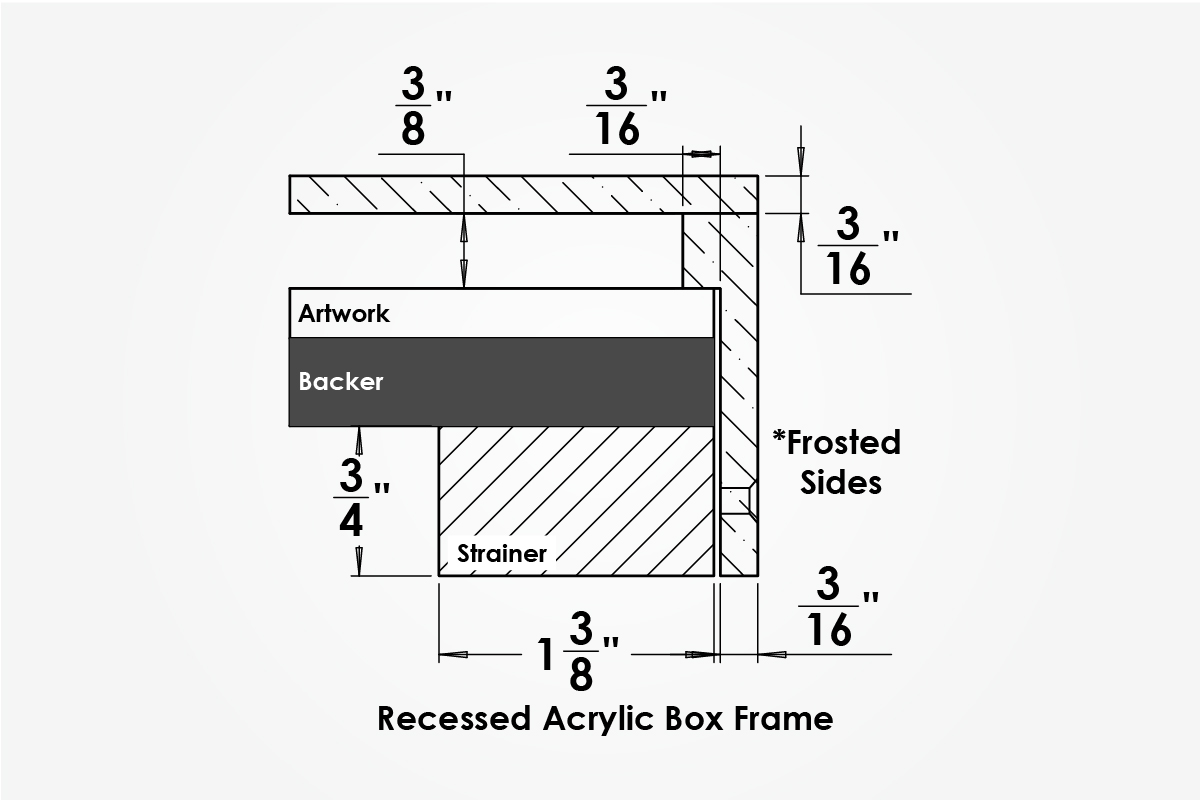

  • Frame is 1-11/16” deep (with 3/16” face)
  • 3/8” acrylic recess
  • Frosted sides
  • Standard includes a 1/16” allowance.
  • Mitered corners
  • Each frame comes with a 3/4” poplar strainer or ask about a 1/2” strainer.
  • Pre-drilled countersunk holes and #4 x 3/4” screws included.
  • Standard hole placement is 3/8” from the back edge of the frame. You may specify non-standard allowances and hole placements as needed.

Face can be made with

  • 3/16” clear acrylic
  • 3/16” UV-filtering acrylic

Sides can be made with

  • Clear acrylic
  • Smokey acrylic

Recessed acrylic box frames have a frosted finish on the sides.

Do you know the dimension you need?

  1. Our frames are ordered by inside dimension (ID) – basically, the size of the art. We automatically give the frame a 1/16” tolerance, unless you request otherwise.
  2. Acrylic box frames are frequently used with fabric-wrapped strainers which may make a larger tolerance necessary.

Have you considered screw hole placement?

Standard hole placement is 3/8” from the back edge of the frame to match our standard 3/4” x 1 3/8” poplar strainers. Custom hole placement is available upon request.

Have you reviewed the material and finishes options?

We offer a number of options for materials and finishes beyond the “standard.

Do you know what our ordering policies are?

Please review our ordering policies before placing your order.
