TIG50

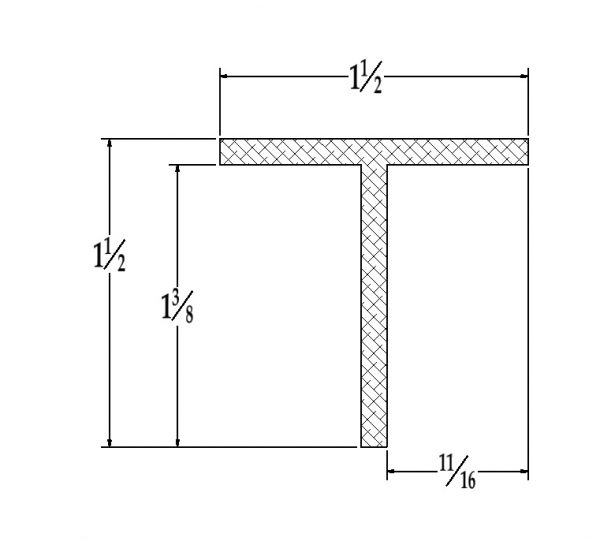

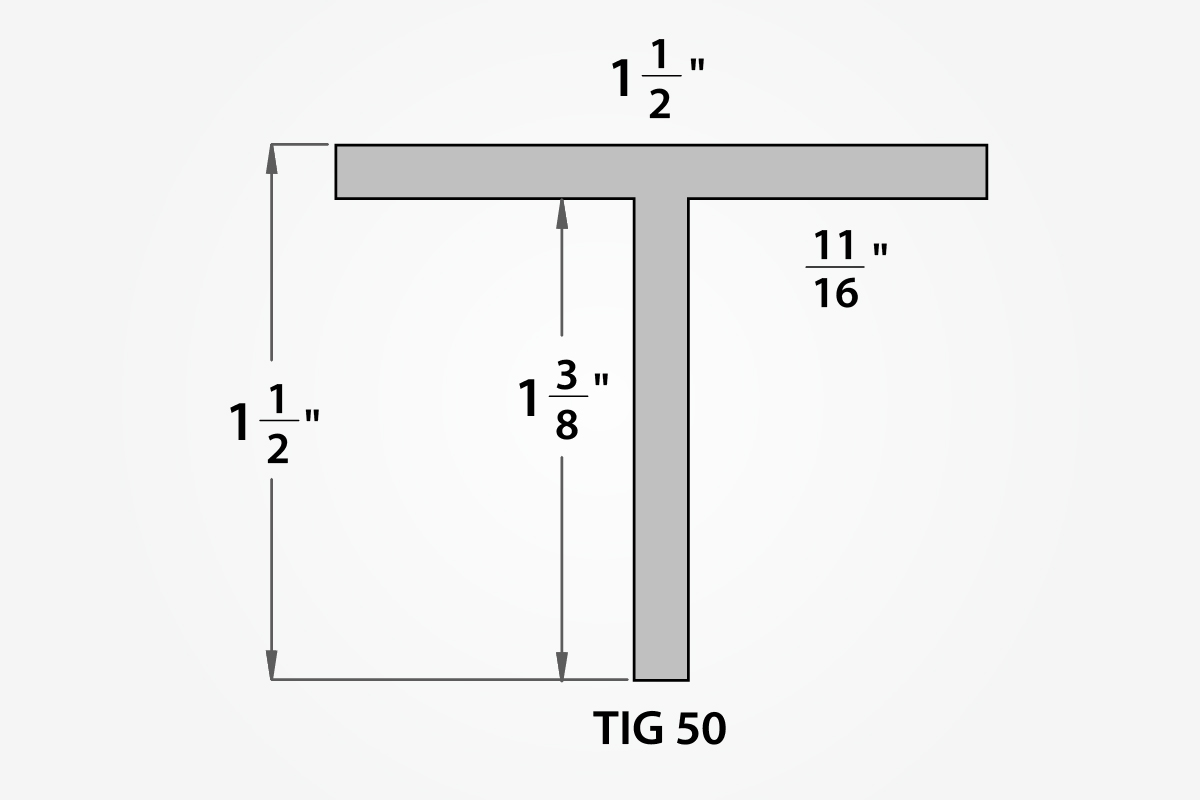

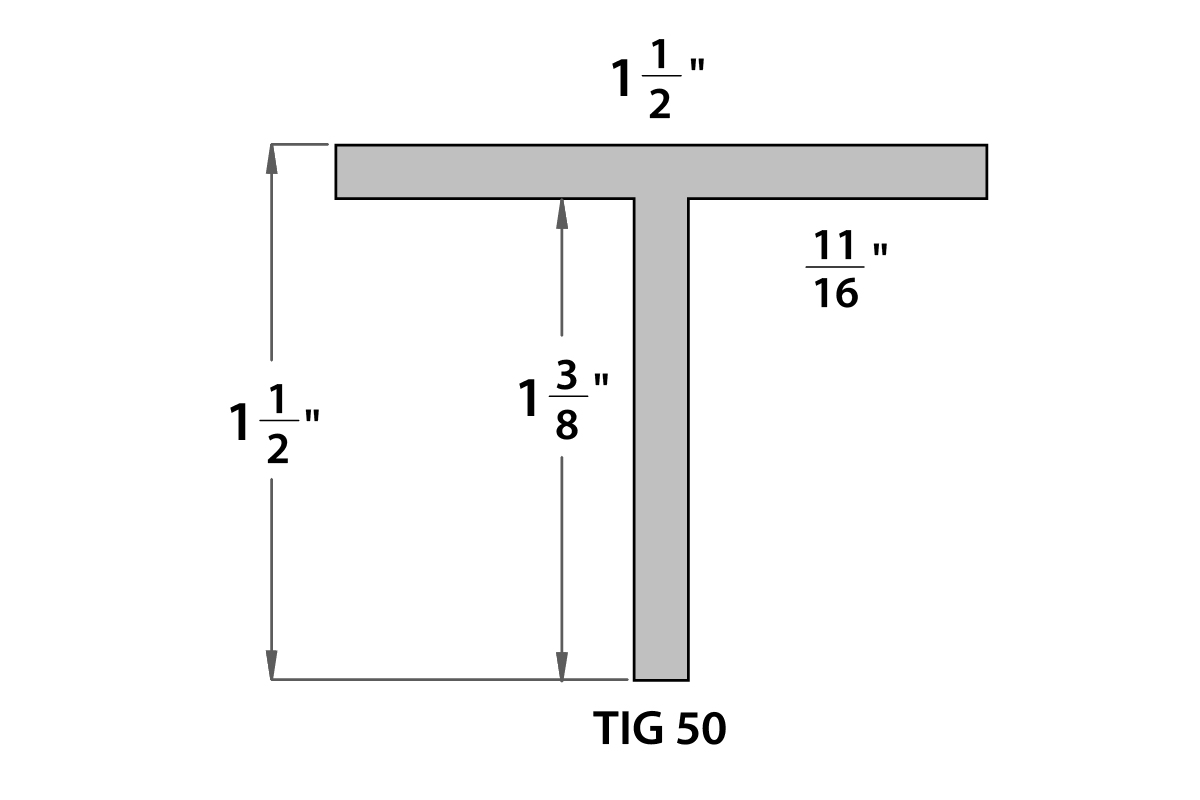

Welded Aluminum Picture Frame TIG50 Profile Drawing

TIG50

contemporary presentation for flat and dimensional art

One of two standard T Frame profiles designed to complement your artwork. Each frame is custom-made to your size specifications, and finished by hand, by one of our talented craftspeople. We offer an array of finishes and can accommodate a broad size range.

  • Maximum Short Dimension: 96″
    Maximum Long Dimension: 96″
  • Minimum Short Dimension: 7″
    Minimum Long Dimension: 7″
  • Come standard with a 1/16” allowance.
  • Each frame comes with a 3/4” poplar strainer or ask about 1/2” strainer.
  • Pre-drilled holes and #4 x 3/4” matching screws included.
  • Standard hole placement is 1/2” from the back edge of the frame. You may specify non-standard allowances and hole placements as needed.

We offer this frame in any of our 18 different powdercoatcolors. Scroll down to see the powdercoat chip chart or to request one.

Do you know the dimension you need?

Our frames are ordered by inside dimension (ID) – basically, the size of the art. We automatically give the frame a 1/16” allowance, unless you request otherwise.

Have you considered screw hole placement?

Standard hole placement is 1/2” from the back edge of the frame to match our standard 3/4” x 1-3/8” poplar strainers. If you request a 1/2” x 1-1/4” strainer, the holes will be 1/4” from the back edge. Custom hole placement is available upon request

Do you know what our ordering policies are?

Please review our ordering policies before placing your order.

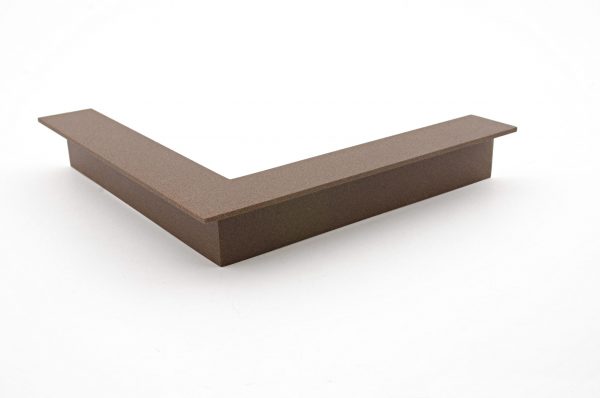

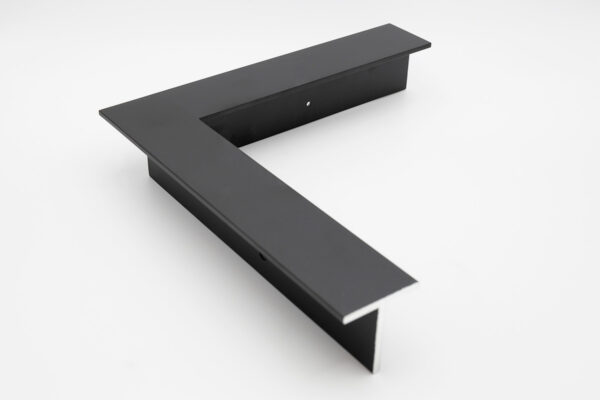

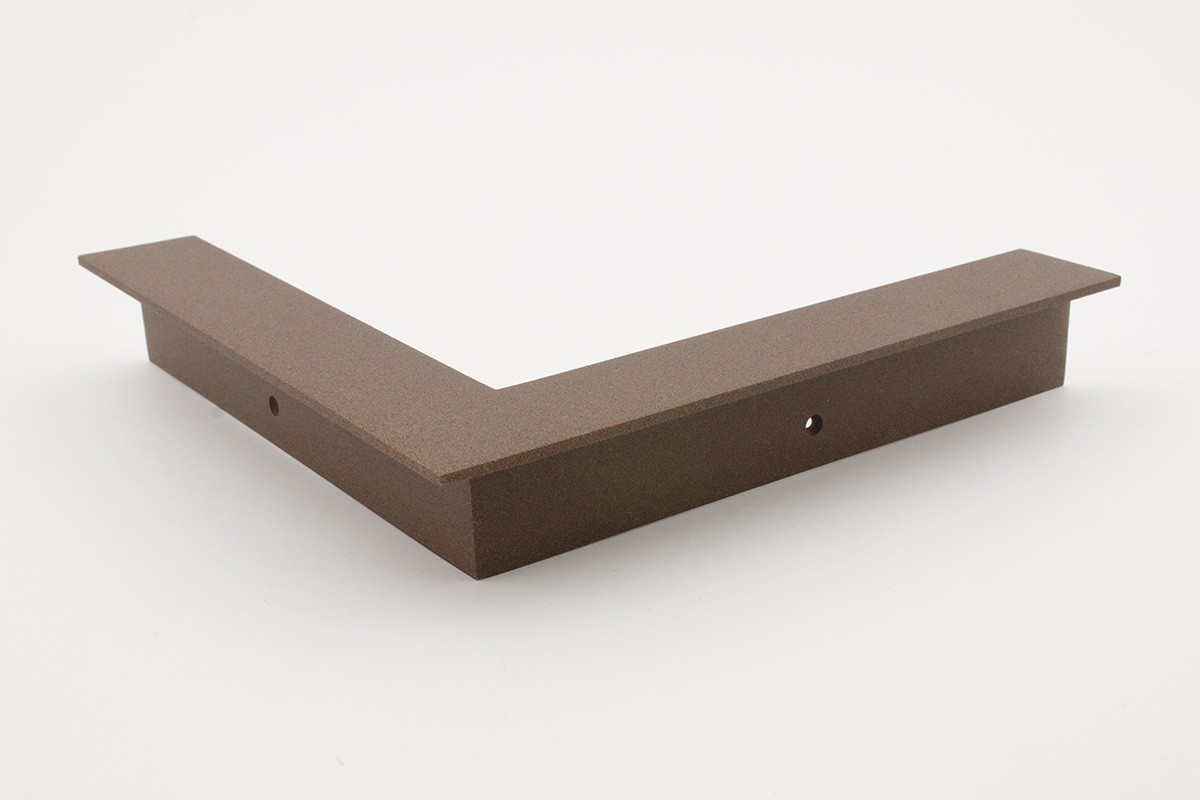

Photo gallery
